HIL-Series, Hydraulic Inline Filter

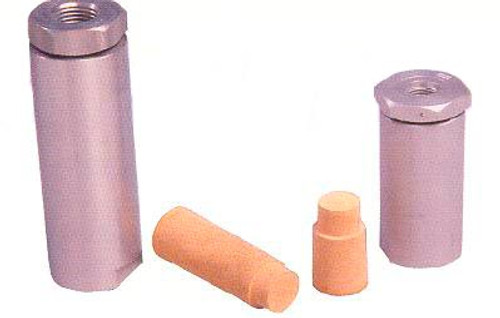

The HIL-Series inline filter is used to protect high-pressure hydraulic systems up to 5,000 PSI. When installed at the pressure side of pump, the sintered bronze filter element can trap all debris larger than 25um to prevent damage to the valves in the system. The design and performance is similar to the HIF-Series filters, but allows the filter element to be removed without breaking the line connections. Filter cleaning or replacement is as easy as unscrewing the filter access cap.
- Body Material: ANODIZED ALUMINUM
- Element Material: SINTERED BRONZE (25 um standard, 10, 40 and 90 um available)
- Max Operating Pressure: 5,000 PSI
- Operating Temperature: Standard Buna "N": 35F to 200F, Optional Viton: 35F to 400F
- Unit Pack: 2 ea.
Compatible with McMaster Carr, UCI, ARROW 9052T, 9052TV, 9053T, 9053TV, 9152T, 9152TV
HIL-28=9052T, HIL-28V=9052TV, HIL-38=9053T, HIL-38V=9053TV, HIL-SAE#6=9152T, HIL-SAE#6V=9152TV
