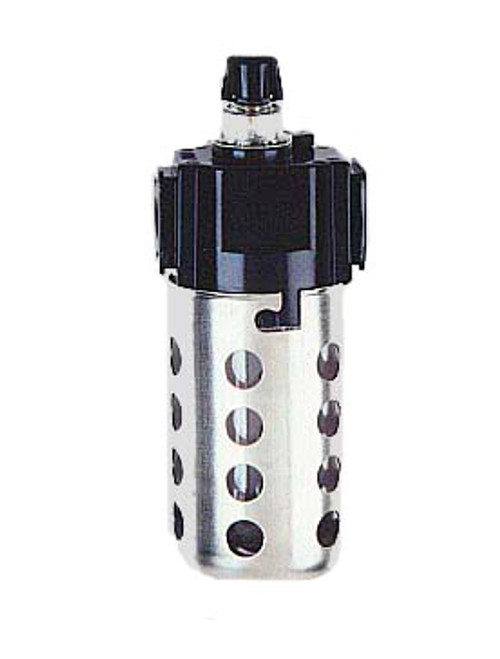

Arrow Pneumatics Standard Arrowfog Lubricator 1/4" (Poly Bowl) 16 SCFM
| Features |
| • Oil delivery at low air flow approximately 2 scfm |
| • Aluminum housing |
| • 3-position non-rising adjustment knob; push to lock, pull to adjust, detach for tamper resistant |
| • Lubricator my be filled without shutting down air line |
| • Can be converted on-line to Ultrafog lubricator with interchangeable module Part #RKL452 |
| Specifications | |
| Polycarbonate Bowl with Bowl Guard | • Max. pressure 150psig |
| • Operating temperature range 40°F to 125°F | |
| Body | • Black E coated aluminum |
| Metal Bowl | • Zinc, black E coated |
| • Max. pressure 200psig | |
| • Operating temperature range 40°F to 160°F | |
| Metal Bowl with Sight | • Zinc, black E coated |
| • Max. pressure 200psig | |
| • Operating temperature range 40°F to 160°F | |
| Recommended Oil | • SAE 10 oil or lighter |
| • Atomized average 2 micron | |
| Warning! Polycarbonate plastic bowls could rupture if exposed to incompatible chemicals whether inside or outside the bowl. If such chemicals are present, use a metal bowl. | |
 | ||||||||
| Dimensions | ||||||||
| Pipe Size | Model Number | Max. Flow SCFM * | Bowl Capacity | Dimensions (Inches) | Weight (lbs.) | |||
| A | B | C | D | |||||
| 1/4" | L352 | 16 | 5 oz. | 2 3/4 | 2 1/8 | 7 | 2 1/2 | 1.0 |
| | ||||||||
| Flow SCFM based on 5.0psi delta p @ 100 psig inlet | ||||||||
