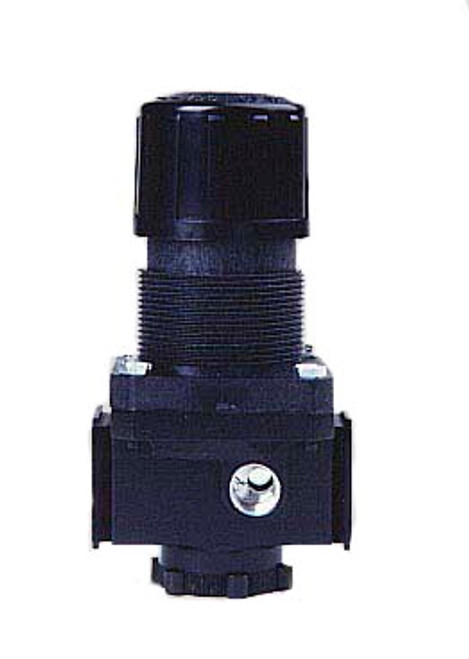

Arrow Pneumatics Standard Air Regulator 1/4" 50 SCFM (Gauge Included) R352G
| Features |
| • Micro finished brass seat to ensure no reduced pressure creep |
| • Reinforced diaphragm for repeated accuracy |
| • Minimal pressure drop due to efficient aspiration |
| • Three position non-rising adjustment knob; push to lock, pull to adjust, detach to make tamper resistant |
| • Relieving style standard |
| • Easily panel mounted |
| • Tamper-proof cap included |
| • In-Line or modular installation |
| • High scfm flow due to efficient aspiration |
| Specifications | |
| Body | • Black E coated aluminum |
| Bonnet | • Glass filled nylon |
| Seals | • Buna N Elastomer standard |
| Seat | • Brass |
| Supply Pressure | • 250 psig |
| Operating Pressure Range | • 5-125 psig |
| Operating Temperature Range | • 40°F to 120°F |
| Gauge Ports | • 1/4" full flow |
 | ||||||||
| Dimensions | ||||||||
| Pipe Size | Model Number | Max Flow SCFM | Dimensions (Inches) | Weight (lbs) | ||||
| A | B | C | D | E | ||||
| 1/4" | R352 | 50 | 2 21/32 | 1 7/32 | 5 3/8 | 2 3/4 | 2 1/4 | 1.0 |
| | ||||||||
| | ||||||||
PneumaticPlus is an authorized Arrow Pneumatics Distributor.
You don't see what you are looking for? Call us. We carry full line of pneumatic products from top manufacturers. We will find a solution that fits your need. (800) 658-3579
- Port Size:
- 1/4" NPT
- Product Category:
- Air Pressure Regulator
